简介

非线性脉冲传播变得容易了

fiberdesk是一种用于线性和非线性脉冲传播的软件。它基于通过分步傅立叶变换方法求解扩展的非线性薛定谔方程,并且能够将其与速率方程模拟相结合。

每个fiberdesk软件的许可证都受硬件加密狗的保护。它可以作为计算机的本地密钥订购,在运行fiberdesk软件时需要保持插入状态。

fiberdesk线性和非线性脉冲传播软件

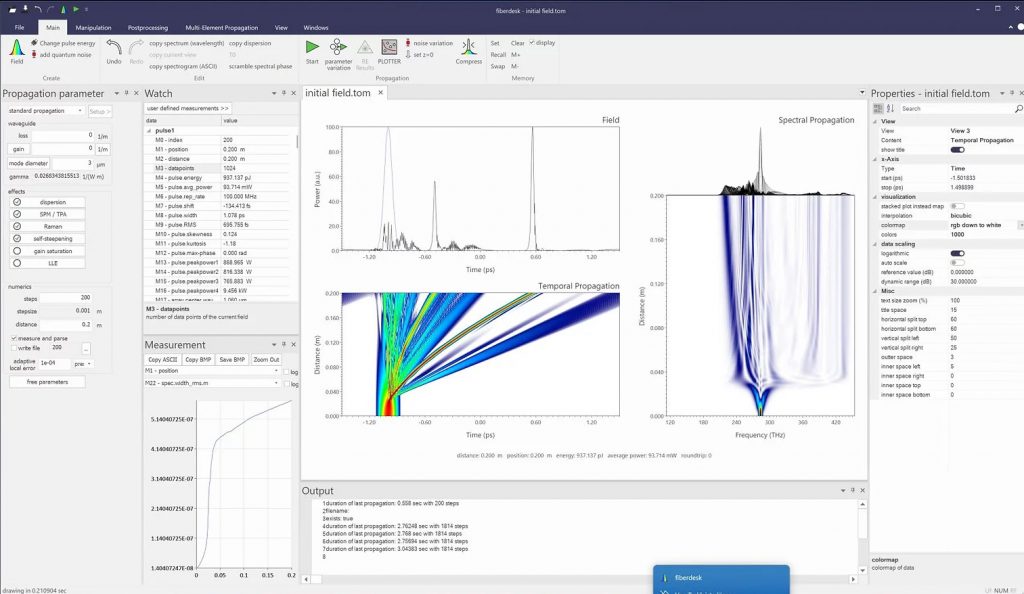

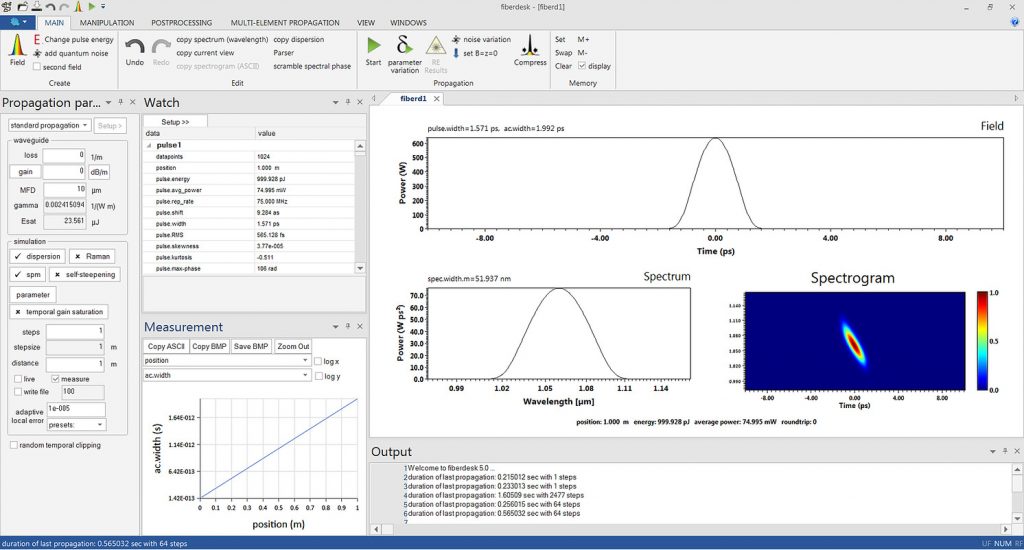

fiberdesk 5 软件界面
fiberdesk线性和非线性脉冲传播软件

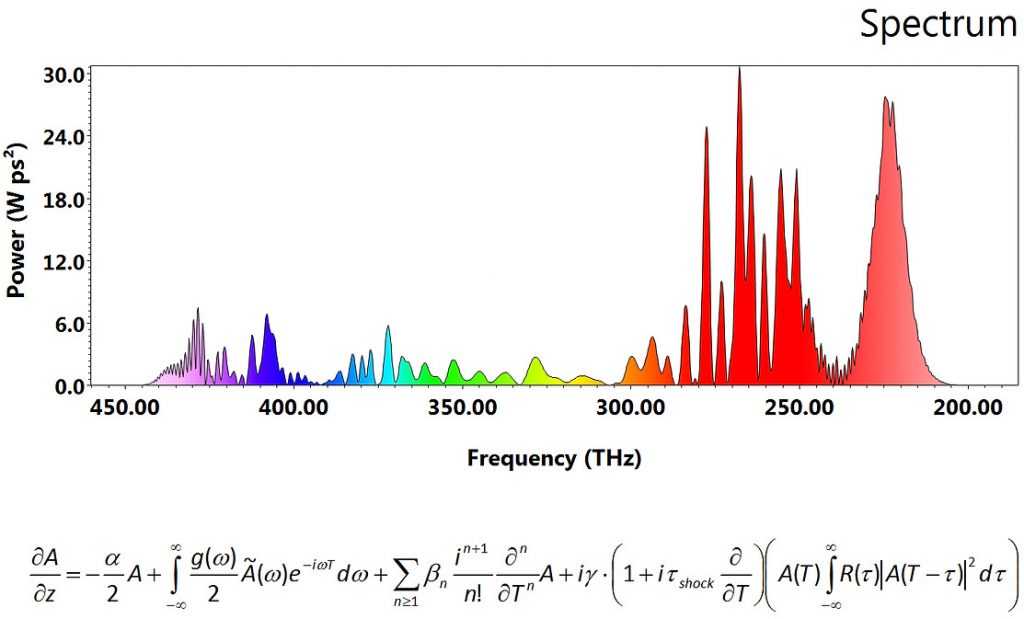

非线性薛定谔方程

下载并安装HASP驱动程序。插入fiberdesk软件加密狗。下载最新版本并运行fiberdesk软件。

fiberdesk软件下载链接

最新版

– 可执行版本5和5 lite(替换版本4),32位和64位

– 加密狗的驱动程序设置

– 手册和功能列表

友情提示:更新或升级中的文件格式可能已更改。将旧的fiberdesk.exe移动到其他目录,以便能够打开以前保存的文件。

演示版

非线性效应和附加元素受限制

fiberdesk 6 beta

测试版

链接到最新的HASP驱动程序

– 需要使用fiberdesk软件加密狗

– 已包含最新版本

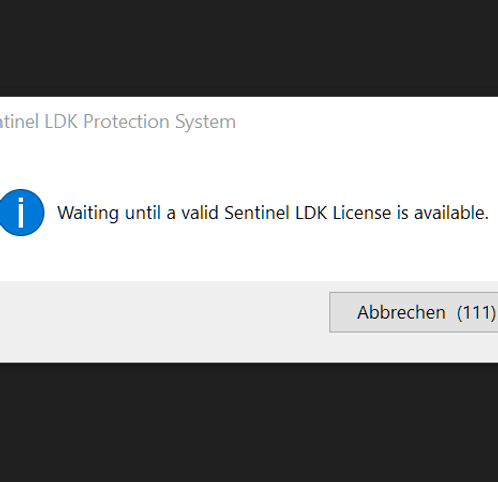

fiberdesk软件由于USB保护而无法启动或发生错误,该怎么办?

要解决此问题,请执行以下步骤:

0.取下USB并使用管理权限启动计算机

1.下载Sentinel HASP / LDK – 命令行运行时安装程序

  sentinelcustomer.safenet-inc.com/sentineldownloads/

2.请从命令行解压缩并启动包含文件haspdinst.exe,以完全卸载所有以前的驱动程序:

   haspdinst -purge

3.再次,从命令行,安装新的驱动程序

   haspdinst -install

4.插入USB并启动fiberdesk.exe

如果仍有问题,请联系我们获得支持。

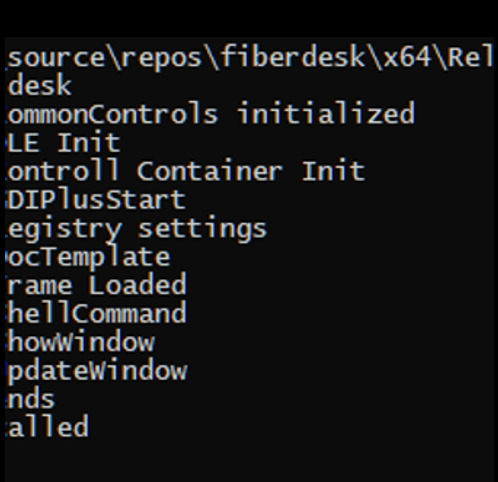

仍然收到错误信息?

请在您的Web浏览器中使用http://localhost:1947,并将密钥的屏幕截图或功能号码发送到官方的fiberdesk电子邮件地址。

可以将fiberdesk用于纳秒脉冲或连续光吗?

原则上,非线性Schrödinger方程允许长脉冲的传播。但是,Brillioun散射没有实现。可以模拟拉曼散射。对于连续光,必须根据时间尺寸设置重复率,以使峰值和平均功率相等。从fiberdesk5开始,提供“创建脉冲”对话框的功能,提供“cw”选项,它自动均衡重复率到时间窗口。

此外,必须记住,频谱带宽由时间分辨率(数据点数量的时间窗口)给出。例如,对于最大数量的数据点,可以处理带宽为~100nm@1μm中心波长的80ns脉冲,其缺点是非常慢。此外,在没有NLSE的情况下,ns和cw光可以用由fiberdesk软件提供的速率方程模拟。

[55] M. Seidel, X. Xiao and A. Hartung, “Solid-Core Fiber Spectral Broadening at Its Limits,” in IEEE Journal of Selected Topics in Quantum Electronics, vol. 24, no. 5, pp. 1-8, Sept.-Oct. 2018.

[54] Li, F., Yang, Z., Wang, Y., Lv, Z., Wei, Y., Wang, X., … & Zhao, W. (2018). Nonlinear compression of ultrashort-pulse laser to 36fs with 556MW peak power. IEEE Photonics Technology Letters.

[53] Yang, K., Zheng, S., Wu, Y., Ye, P., Huang, K., Hao, Q., & Zeng, H. (2018). Low-repetition-rate all-fiber integrated optical parametric oscillator for coherent anti-Stokes Raman spectroscopy. Optics Express, 26(13), 17519-17528.

[52] Tang, M., Becheker, R., Hanzard, P. H., Tyazhev, A., Oudar, J. L., Mussot, A., … & Hideur, A. (2018). Low Noise High-Energy Dissipative Soliton Erbium Fiber Laser for Fiber Optical Parametric Oscillator Pumping. Applied Sciences, 8(11), 2161.

[51] Becheker, R., Tang, M., Hanzard, P. H., Tyazhev, A., Mussot, A., Kudlinski, A., Hideur, A. “High-energy dissipative soliton-driven fiber optical parametric oscillator emitting at 1.7 µm.” Laser Physics Letters, 15(11), 115103 (2018).

[50] Delagnes, J. C., Royon, R., Lhermite, J., Santarelli, G., Muñoz, H., Grosz, T., Cormier, E.  “High-power widely tunable ps source in the visible light based on four wave mixing in optimized photonic crystal fibers,” Opt. Expr. 26(9), 11265-11275 (2018).

[49] Sagara, H., Suzuki, A., KItajima, S., & Tokurakawa, M. (2018, November). Two micron All-normal-dispersion NPR mode-locked Tm: ZBLAN fiber laser. In Advanced Solid State Lasers (pp. ATu2A-25). Optical Society of America.

[48] Niu, F., Li, J., Yang, W., Zhang, Z., & Wang, A. “Fiber-Based High-Energy Femtosecond Pulses Tunable From 920 to 1030 nm for Two-Photon Microscopy,” IEEE Photonics Technology Letters, 30(16), 1479-1482 (2018).

[47] Zaharit Refaeli, Yariv Shamir, Atara Ofir, Gilad Marcus, “Nearly fully compressed 1053 nm pulses directly obtained from 800 nm laser-seeded photonic crystal fiber below zero dispersion point”, Proc. SPIE 10516, Nonlinear Frequency Generation and Conversion: Materials and Devices XVII, 1051607 (15 February 2018).

[46] Jinwei Zhang, Ka Fai Mak, Nathalie Nagl, Marcus Seidel, Dominik Bauer, Dirk Sutter, Vladimir Pervak, Ferenc Krausz & Oleg Pronin, “Multi-mW, few-cycle mid-infrared continuum spanning from 500 to 2250 cm−1”, Light: Science & Applications 7, 17180 (2018).

[45] O. de Vries, T. Schreiber, R. Eberhardt, A. Tünnermann, M. Windmüller, J. Riedel, M. Rößler, F. Kolb, “Design optimization of fiber amplifiers exposed to high gamma-radiation doses,” Proc. SPIE 10562, International Conference on Space Optics — ICSO 2016, 105620M (25 September 2017).

[44] Hao Luo, Li Zhan, Zhiqiang Wang, Liang Zhang, Cheng Feng, and Xuehao Shen, “All-Fiber Generation of Sub-30 fs Pulses at 1.3-μm via Cherenkov Radiation With Entire Dispersion Management,” J. Lightwave Technol. 35, 2325-2330 (2017)

[43] Joachim Buldt, Michael Müller, Robert Klas, Tino Eidam, Jens Limpert, and Andreas Tünnermann, “Temporal contrast enhancement of energetic laser pulses by filtered self-phase-modulation-broadened spectra,” Opt. Lett. 42, 3761-3764 (2017).

[42] Moritz Hinkelmann, Dieter Wandt, Uwe Morgner, Jörg Neumann, and Dietmar Kracht, “Mode-locked Ho-doped laser with subsequent diode-pumped amplifier in an all-fiber design operating at 2052 nm,” Opt. Express 25, 20522-20529 (2017).

[41] Marco Plötner, Victor Bock, Tim Schultze, Franz Beier, Thomas Schreiber, Ramona Eberhardt, and Andreas Tünnermann, “High power sub-ps pulse generation by compression of a frequency comb obtained by a nonlinear broadened two colored seed,” Opt. Express 25, 16476-16483 (2017).

[40] L. Lavenu, M. Natile, F. Guichard, Y. Zaouter, M. Hanna, E. Mottay, and P. Georges, “High-energy few-cycle Yb-doped fiber amplifier source based on a single nonlinear compression stage,” Opt. Express 25, 7530-7537 (2017).

[39] M. Gebhardt, C. Gaida, F. Stutzki, S. Hädrich, C. Jauregui, J. Limpert, and A. Tünnermann, “High average power nonlinear compression to 4  GW, sub-50  fs pulses at 2  μm wavelength,” Opt. Lett. 42, 747-750 (2017).

[38] Steffen Hädrich, Marco Kienel, Michael Müller, Arno Klenke, Jan Rothhardt, Robert Klas, Thomas Gottschall, Tino Eidam, András Drozdy, Péter Jójárt, Zoltán Várallyay, Eric Cormier, Károly Osvay, Andreas Tünnermann, and Jens Limpert, “Energetic sub-2-cycle laser with 216  W average power,” Opt. Lett. 41, 4332-4335 (2016).

[37] Martin Gebhardt, Christian Gaida, Fabian Stutzki, Steffen Hädrich, Cesar Jauregui, Jens Limpert, Andreas Tuennermann, “Self-compression to 24 MW peak power in a fused silica solid-core fiber using a high-repetition rate thulium-based fiber laser system,” Proc. SPIE 9728, Fiber Lasers XIII: Technology, Systems, and Applications, 97282H (March 11, 2016).

[36] D. Gaponov, L. Lavoute, S. Février, A. Hideur, N. Ducros, “2µm all-fiber dissipative soliton master oscillator power amplifier.” Proc. SPIE 9728, Fiber Lasers XIII: Technology, Systems, and Applications, 972834 (March 11, 2016).

[35] T. Gottschall, J. Limpert, and A. Tünnermann, “Widely tunable optical parametric oscillator based on four-wave mixing,” in Advanced Solid State Lasers, OSA Technical Digest (online) (Optical Society of America, 2015), paper ATu4A.9.

[34] C. Gaida, M. Gebhardt, F. Stutzki, C. Jauregui, J. Limpert, and A. Tünnermann, “Self-compression in a solid fiber to 24  MW peak power with few-cycle pulses at 2  μm wavelength,” Opt. Lett. 40, 5160-5163 (2015)

[33] D. A. Gaponov, R. Dauliat, D. Darwich, T. Mansuryan, R. Jamier, S. Grimm, K. Schuster, and P. Roy, “High-power passively mode-locked dissipative soliton fiber laser featuring cladding-pumped non-CVD thulium-doped fiber,” J. Opt. Soc. Am. B 32, 1656-1659 (2015)

[32] Thomas Gottschall, Tobias Meyer, Michael Schmitt, Jürgen Popp, Jens Limpert, and Andreas Tünnermann, “Four-wave-mixing-based optical parametric oscillator delivering energetic, tunable, chirped femtosecond pulses for non-linear biomedical applications,” Opt. Express 23, 23968-23977 (2015)

[31] M. Gebhardt, C. Gaida, S. Hädrich, F. Stutzki, C. Jauregui, J. Limpert, and A. Tünnermann, “Nonlinear compression of an ultrashort-pulse thulium-based fiber laser to sub-70  fs in Kagome photonic crystal fiber,” Opt. Lett. 40, 2770-2773 (2015)

[30] Martin Gebhardt, Christian Gaida, Fabian Stutzki, Steffen Hädrich, Cesar Jauregui, Jens Limpert, and Andreas Tünnermann, “Impact of atmospheric molecular absorption on the temporal and spatial evolution of ultra-short optical pulses,” Opt. Express 23, 13776-13787 (2015)

[29] M. Gebhardt, C. Gaida, F. Stutzki, C. Jauregui, J. Limpert, and A. Tünnermann, “Sub-200 fs, nJ-level stretched-pulse thulium-doped fiber oscillator at 23MHz repetition rate,” in Advanced Solid State Lasers, OSA Technical Digest (online) (Optical Society of America, 2014), paper AM5A.43.

[28] F. Beier, H.-J. Otto, C. Jauregui, O. de Vries, T. Schreiber, J. Limpert, R. Eberhardt, and A. Tünnermann, “1009  nm continuous-wave ytterbium-doped fiber amplifier emitting 146  W,” Opt. Lett. 39, 3725-3727 (2014)

[27] Tongxiao Jiang, Aimin Wang, Guizhong Wang, Wei Zhang, Fuzeng Niu, Chen Li, and Zhigang Zhang, “Tapered photonic crystal fiber for simplified Yb:fiber laser frequency comb with low pulse energy and robust fceo singals,” Opt. Express 22, 1835-1841 (2014).

[26] Niu, F., Jiang, T., Wang, A., Wang, G., Li, C., & Zhang, Z. (2014, July). Design and fabrication of tapered photonic crystal fiber for astro-combs applications. In Optical Fibre Technology, 2014 OptoElectronics and Communication Conference and Australian Conference on (pp. 709-711). IEEE.

[25] Niu, F., Jiang, T., Wang, G., Li, C., Wang, A., & Zhang, Z. (2014, June). Green-enhanced super-continuum generation in a tapered photonic crystal fiber for efficient ƒ ceo detection. In Lasers and Electro-Optics (CLEO), 2014 Conference on (pp. 1-2). IEEE.

[24] Jiang, T., Wang, G., Wang, A., Zhang, W., Niu, F., Li, C., & Zhang, Z. (2014, July). Tapered photonic crystal fiber for simplified 500MHz Yb: Fiber laser frequency comb with no amplifier. In Optical Fibre Technology, 2014 OptoElectronics and Communication Conference and Australian Conference on (pp. 120-122). IEEE.

[23] Haxsen, F., Wienke, A., Wandt, D., Neumann, J., & Kracht, D. (2014). Tm-doped mode-locked fiber lasers. Optical Fiber Technology, 20(6), 650-656.

[22] Chi, J., Li, P., Liang, B., Yao, Y., Hu, H., Zhang, G., … & Ma, C. (2014). 100-W 430-ps all-fiber picosecond laser by using 10-/130-μm ytterbium-doped double-clad fiber and its application in SCS. Applied Physics B, 1-9.

[21] R. A. Sims, P. Kadwani, H. Ebendorff-Heideprem, L. Shah, T. M. Monro, M. Richardson, “Chirped pulse amplification in single mode Tm:fiber using a chirped Bragg grating,” Applied Physics B, May 2013, Volume 111, Issue 2, pp 299-304

[20] Tongxiao Jiang, Guizhong Wang, Wei Zhang, Chen Li, Aimin Wang, and Zhigang Zhang, “Octave-spanning spectrum generation in tapered silica photonic crystal fiber by Yb:fiber ring laser above 500 MHz,” Opt. Lett. 38, 443-445 (2013).

[19] J. Lecourt, S. Boivinet, and Y. Hernandez, “All-normal dispersion, all-fibered, PM mode-locked laser and its modeling,” in International Photonics and Optoelectronics Meetings, OSA Technical Digest (online) (Optical Society of America, 2012), paper STh4A.03.

[18] Terniche, S., et al. “ETUDE DE LA PROPAGATION D’UNE IMPULSION COURTE EN CAVITE LASER AVEC UN LOGICIEL DE SIMULATION NUMERIQUE.” Journal of Fundamental and Applied Sciences 4.1 (2012): 66-73.

[17] Anthony Bertrand ; Flavien Liégeois ; Yves Hernandez and Domenico Giannone “Efficient high-power narrow-linewidth all-fibred linearly polarized ytterbium laser source”, Proc. SPIE 8433, Laser Sources and Applications, 84330F (June 1, 2012).

[16] Masayuki Suzuki, Motoyoshi Baba, Shin Yoneya and Hiroto Kuroda, Efficient spectral broadening of supercontinuum in photonic crystal fiber with self-phase modulation induced by femtosecond laser pulse, Appl. Phys. Lett. 101, 191110 (2012).

[15] J. Lhermite, C. Lecaplain, G. Machinet, R. Royon, A. Hideur, and E. Cormier, “Mode-locked 0.5 μJ fiber laser at 976 nm,” Opt. Lett. 36, 3819-3821 (2011)

[14] Frithjof Haxsen, Dieter Wandt, Uwe Morgner, Joerg Neumann, and Dietmar Kracht, “Pulse characteristics of a passively mode-locked thulium fiber laser with positive and negative cavity dispersion,” Opt. Express 18, 18981-18988 (2010)

[13] Michael Mielke, David Gaudiosi, Kyungbum Kim, Tolga Yilmaz, Michael Greenberg, Sha Tong, Xinhua Gu, Mark Geusen, Robert Cline, Mark Slovick, Neill Allen, Michael Manning, Barry Schuler and Steven Sapers, “Pulse and Amplifier Dynamics in High Energy Fiber Optic Ultrashort Pulse Laser Systems,” Proc. SPIE Vol. 7214 (Feb. 6, 2009).

[12] S. Hädrich, J. Rothhardt, F. Röser, T. Gottschall, J. Limpert, and A. Tünnermann, “Degenerate optical parametric amplifier delivering sub 30 fs pulses with 2GW peak power,” Opt. Express 16, 19812-19820 (2008)

[11] T. Eidam, F. Röser, O. Schmidt, J. Limpert and A. Tünnermann, “57 W, 27 fs pulses from a fiber laser system using nonlinear compression,” Applied Physics B: Lasers and Optics, Vol. 92, 1, pp. 9-12 (2008)

[10] B. Ortaç et. al. “Passively mode-locked single-polarization microstructure fiber laser,” Opt. Express 16, 2122-2128 (2008)

[9] T. Schreiber, D. Schimpf, D. Müller, F. Röser, J. Limpert, and A. Tünnermann, “Influence of pulse shape in self-phase-modulation-limited chirped pulse fiber amplifier systems,” J. Opt. Soc. Am. B 24, 1809-1814 (2007)

[8] T. Schreiber, B. Ortaç, J. Limpert, and A. Tünnermann, “On the study of pulse evolution in ultra-short pulse mode-locked fiber lasers by numerical simulations,” Opt. Express 15, 8252-8262 (2007)

[7] C. Aguergaray, T. V. Andersen, D. N. Schimpf, O. Schmidt, J. Rothhardt, T. Schreiber, J. Limpert, E. Cormier, and A. Tünnermann, “Parametric amplification and compression to ultrashort pulse duration of resonant linear waves,” Opt. Express 15, 5699-5710 (2007)

[6] B. Ortac, M. Plötner, T. Schreiber, J. Limpert, and A. Tünnermann, “Experimental and numerical study of pulse dynamics in positive net-cavity dispersion modelocked Yb-doped fiber lasers,” Opt. Express 15, 15595-15602 (2007)

[5] T. V. Andersen et. al., “High repetition rate tunable femtosecond pulses and broadband amplification from fiber laser pumped parametric amplifier,” Opt. Express 14, 4765-4773 (2006)

[4] T. Schreiber et. al., “Microjoule-level all-polarization-maintaining femtosecond fiber source,” Opt. Lett. 31, 574-576 (2006)

[3] T. Schreiber et. al., “Supercontinuum generation by femtosecond single and dual wavelength pumping in photonic crystal fibers with two zero dispersion wavelengths,” Opt. Express 13, 9556-9569 (2005)

[2] J. Limpert et. al., “Ultra-broad bandwidth parametric amplification at degeneracy,” Opt. Express 13, 7386-7392 (2005)

[1] J. Limpert et. al., “High-power femtosecond Yb-doped fiber amplifier,” Opt. Express 10, 628-638 (2002)
